Mechanical Design - Printed Parts!

Check it out! Put some of the prints together, to show the overall structure.








Unfortunately the top part came in 3 pieces, so we will have to epoxy the parts together. However, the middle and bottom parts all connected to each other well.

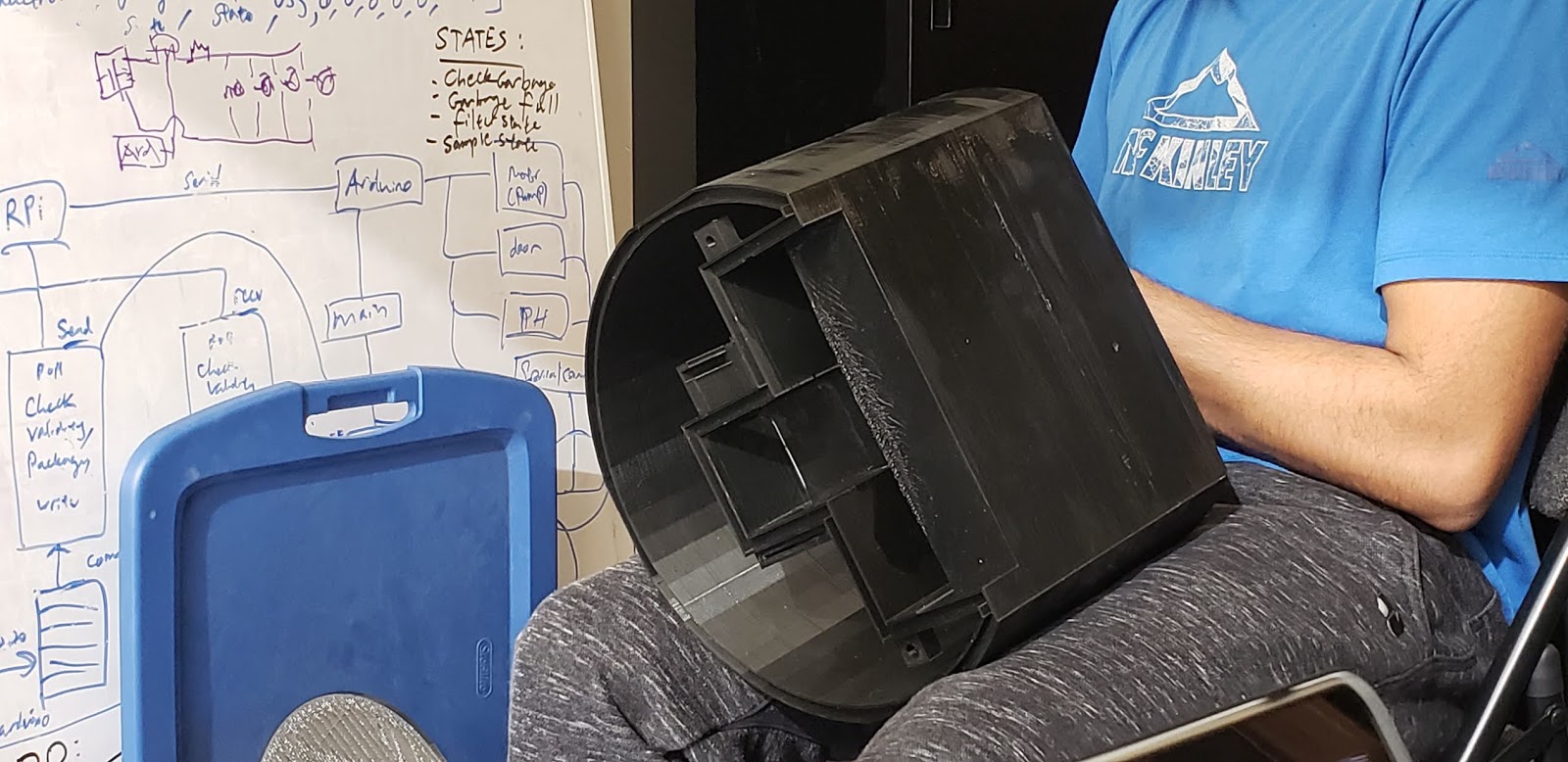

Above is what the middle part looks like, from the inside. Once the parts were obtained, we coated all the parts with the XTC-3D solution, so that it would have time to cure before assembly of all the major components.
