Mechanical Development - Finalized Locking Mechanism

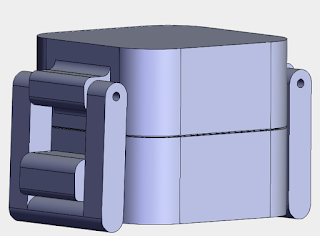

Based on the results of our tests with the locking mechanism (see Watertight Locking Mechanism post), we decided to finalize on a lock design, as seen in the picture below.


The lock is pretty much the same as the one seen in the post, suggesting that our waterproofing tests went well. Along with silicone for sealing any potential air gaps, it is possible to ensure that the three sections of our pod will be tightly fitted together. c-Clamps would be used to connect the locks, through the thru-holes between the two sections. The locks would be positioned on the hexagonal imprints located at strategic points on the circumference of the entire Lilypod structure. Check for a full assembly of the pod, in a future post, to visualize the physical interactions between each section of the bot.

Comments

Post a Comment

Popular posts from this blog

Mechanical Design - Watertight Locking Mechanism

To solve the issue of protecting the electronics from water damage from the external water body, several locking mechanisms were explored, connecting the middle interface (i.e. spectroscopy chamber and internal water flow), the bottom interface (pump and mesh) and the top interface (pad and flotation devices). This was explored in a manner which would ensure no water would flow between the connecting parts. Below is a rendering of the chosen locking mechanism: The above part was meant to serve as a prototype, where a latch from the above part would lock under a solid extrusion in the bottom part, similar to a tupperware container. Based on this prototype, the locking mechanism would be placed at three calculated points around the circumference of the entire Lilypod, for each interface between connecting parts (i.e. three for each interface). This prototype was sent for 3D printing to be tested. Check back on the outcome of this test!
Read more

Final Post (Poster, Video)

With the ongoing COVID-19 situation and the symposium being cancelled, our team was unfortunately unable to demo our project to the public last Friday. Our team put together a video of all the functionalities of the final product, which you can view below. As well, we created a poster outlining all the important pieces of information about this product. Hope you all enjoy!
Read more

Software Development - Making Lilypod Intelligent – Part 3 (The Implementation)

To implement the neural network, a Tensorflow backend with a Keras wrapper was used. The following is a visual representation of the network: It was designed to not be too deep since we do not have access to any pretrained layers that would be useful, nor do we have enough data to train the large number of parameters that a deeper network would have.  In addition to the model itself, an interface was built to allow hydroponic farmers to train the network with new data as well as to obtain a crop quality prediction when desired in an easy to use manner. To do this, a desktop app was built using Pygame and Matplotlib. The app displays a dashboard, showing graphs of the latest sensor readings of the water. Located beside the graph is an interface with two text fields and two buttons, each corresponding to a different text field. One text field allows farmers to input a crop score based on their own expertise. The button corresponding to that text field, when clicked, runs a
